电动自行车内转子电机离合器技术参数表E-bike Inner Rotor Motor Clutch Technical Specifications Tab
产品详情
| 电动自行车内转子电机离合器技术参数表 E-bike Inner Rotor Motor Clutch Technical Specifications Table | ||||||||
| 型号 Type | 外径 external diameter | 齿顶圆直径 Addendum diameter | 齿根圆直径 Root circle diameter | 分度圆直径 Dividing circle diamerer | 齿数 Number of teeth | 模数 Modulus | 压力角 Pressure angle | 精度等级 Accuracy class |
| DLK077×22-25-X | 77 | 65.25 | 70.75 | 67.5 | 54 | 1.25 | 20° | 8GJ |
| DLK087×20.5-39-X | 87 | 76.3 | 81.1 | 78 | 78 | 1 | 20° | 8GJ |
| DLK94-Z63 | 94 | 61 | 65.5 | 63 | 63 | 1 | 20° | 8EG/GB1095 |
| DLK98-Z54 | 98 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK99-Z54 | 99 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK103.5-Z58 | 103.5 | 70 | 75.625 | 72.5 | 58 | 1.25 | 20° | 8级-GB/T10095 |
| DLK110×21.5-40-Z81 | 110 | 98.7 | 104.33 | 101.25 | 81 | 1.25 | 20° | 8级/GB10095 |
| DLK116-Z69 | 116 | 83.986 | 89.611 | 69 | 1.25 | 20° | GB10095-888GJ | |

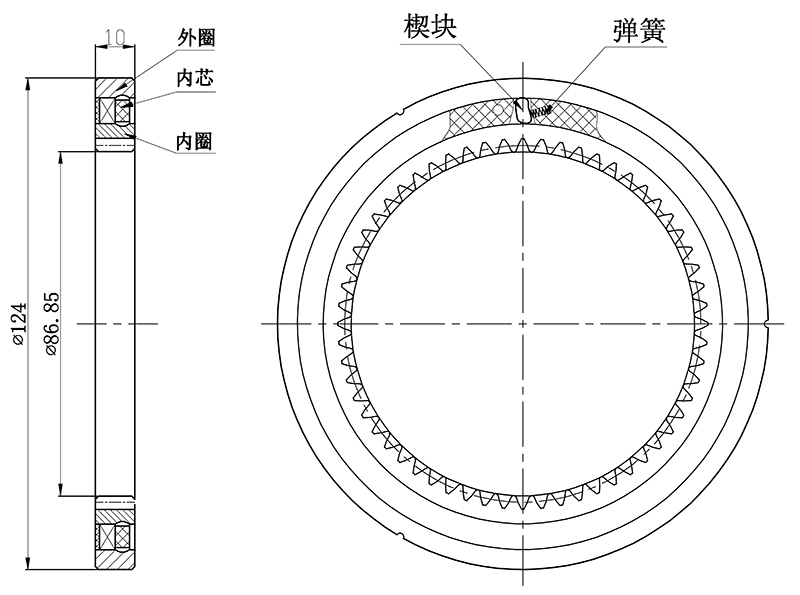

| DLK124-Z60 | 124 | 86.85 | 93.6 | 90 | 60 | 1.5 | 20° | 8EG/GB1095 |
| DLK129-Z75 | 129 | 91.25 | 96.785 | 92.419 | 75 | 1.25 | 20° | JGMA 3级 |

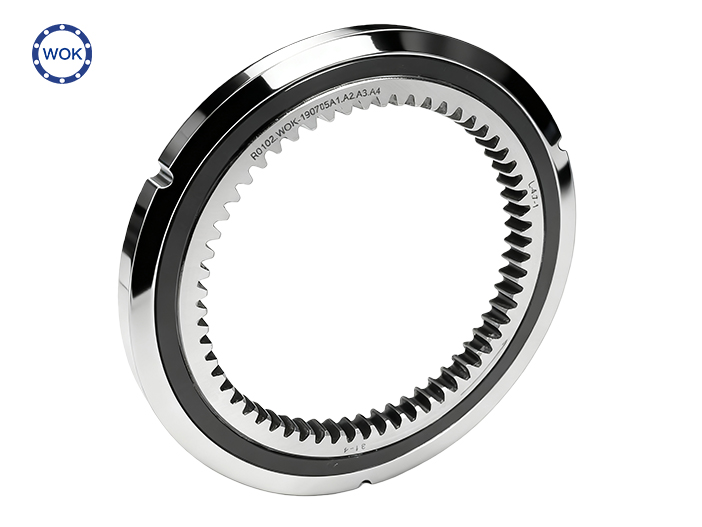

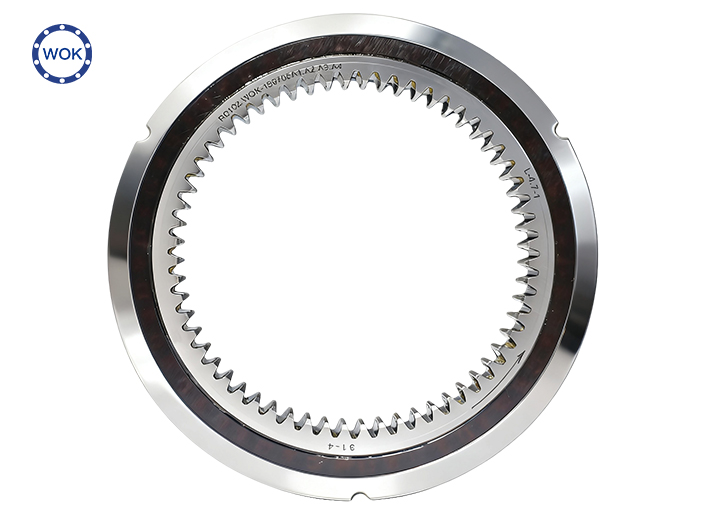

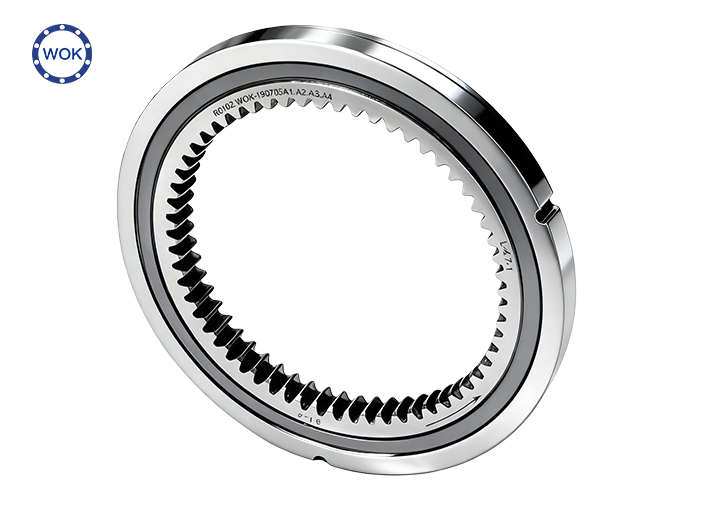

| 1. 本产品适用于电动自行车轮毂电机(内转子电机) This product is suitable for electric bicycle wheel hub motors( Inner Rotor Motor) 2.DLK124-Z60 对应产品型号编码-R0102.WOK-190705A1.A2.A3.A4 L-4.7-1 ← 31-4(左旋) DLK124-Z60 Corresponding product model code: R0102.WOK-190705A1.A2.A3.A4 L-4.7-1 ← 31-4(levorotation) | ||||||||
说明

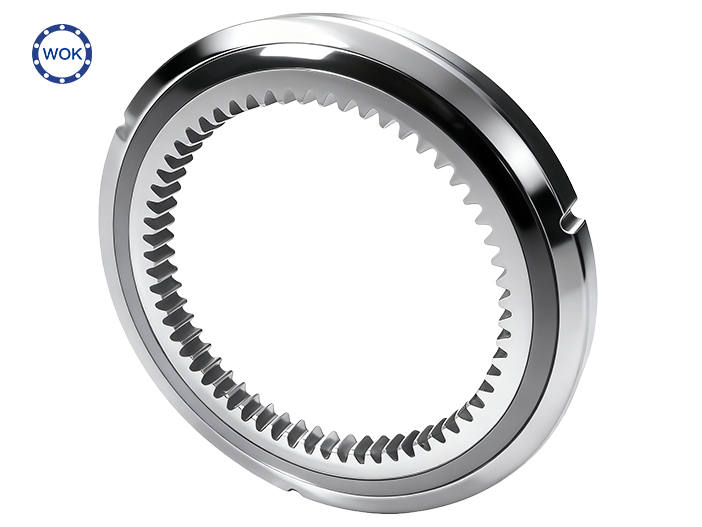

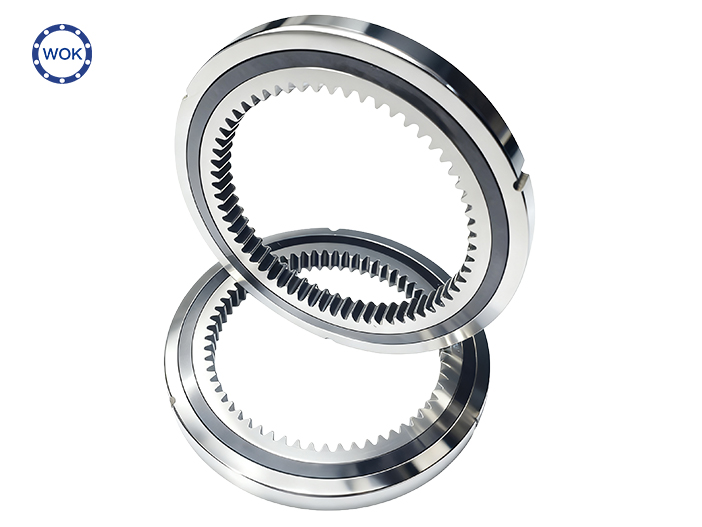

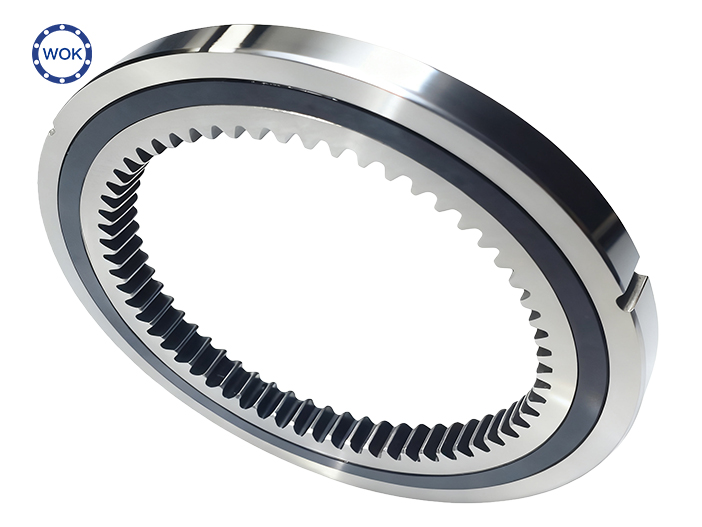

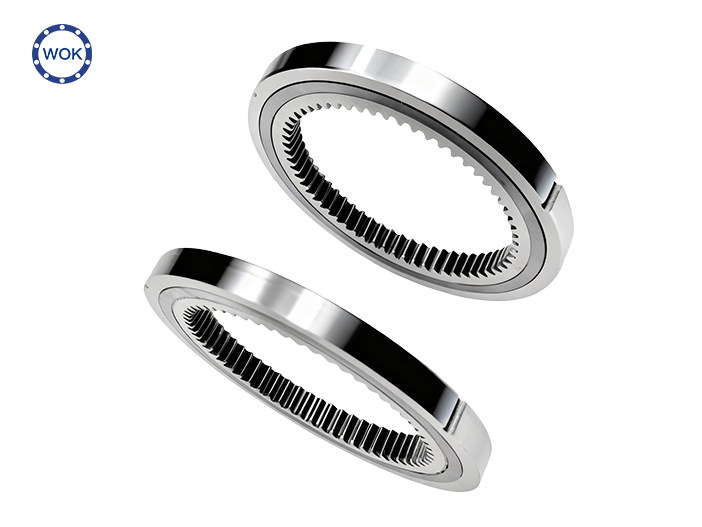

本款单向离合器主要应用于配备内转子电机的电动自行车，由本公司独立研发和生产。使用本离合器转子的动平衡效果更好，提升了电动自行车电机的使用性能，具有使用寿命长，耐高温，低噪音，性能更稳定等优点。
This one-way clutch is mainly used for electric bicycles equipped with an inner rotor motor, and is independently developed and produced by our company. The use of this clutch rotor has a better dynamic balance effect, improves the performance of electric bicycle motors, and has advantages such as long service life, high temperature resistance, low noise, and more stable performance.
技术要求
1.内部使用高润滑脂填料并做好密封；
2.零件在装配前必须清理和清洗干净，不得有毛刺、飞边、氧化皮、锈蚀、切屑、油污、着色剂和灰尘；
3.单向器额定扭矩50N.m，最大扭矩大于80N.m，离开时转动灵活，离合次数大于30万次以上；
4.单向器打滑时滚珠必须工作，此时内外圆圈同心度保持在0.035以内，单向器传递扭矩时棘轮工作，此时内外圈同心度0.045以内。
1. Use high lubricating grease fillers internally and seal them properly;
2. The parts must be cleaned and cleaned before assembly, without burrs, flash edges, oxide skin, rust, chips, oil stains, colorants, and dust;
3. The rated torque of the one-way clutch is 50N. m, and the maximum torque is greater than 80N. m. It can rotate flexibly when leaving, with more than 300000 clutch times;
4. When the one-way clutch slips, the ball must work. At this time, the concentricity of the inner and outer rings remains within 0.035. When the one-way clutch transfers torque, the ratchet operates. At this time, the concentricity of the inner and outer rings is within 0.045.
