电动自行车内转子电机离合器技术参数表 E-bike Inner Rotor Motor Clutch Technical Specification
产品详情

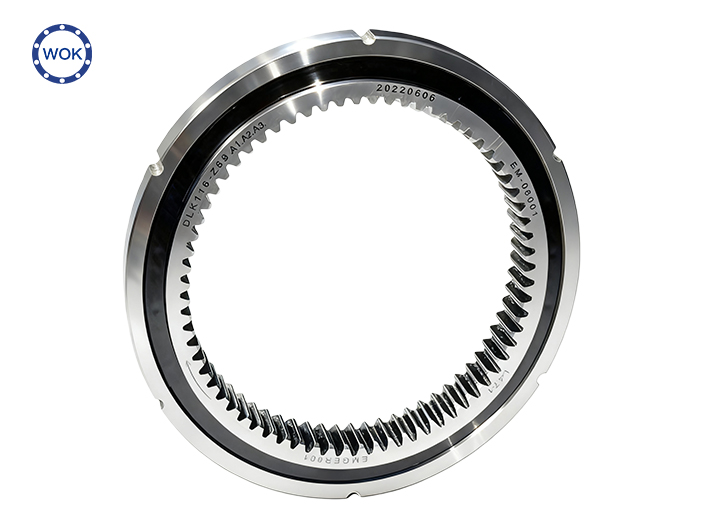

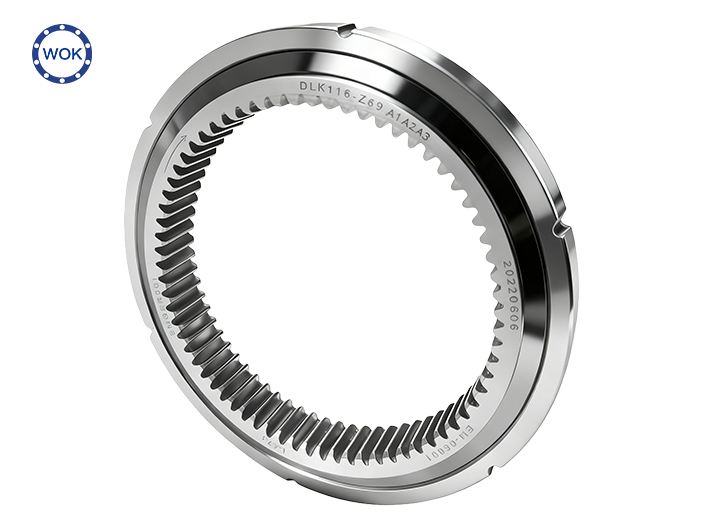

| 电动自行车内转子电机离合器技术参数表 E-bike Inner Rotor Motor Clutch Technical Specifications Table | ||||||||
| 型号 Type | 外径 external diameter | 齿顶圆直径 Addendum diameter | 齿根圆直径 Root circle diameter | 分度圆直径 Dividing circle diamerer | 齿数 Number of teeth | 模数 Modulus | 压力角 Pressure angle | 精度等级 Accuracy class |
| DLK077×22-25-X | 77 | 65.25 | 70.75 | 67.5 | 54 | 1.25 | 20° | 8GJ |
| DLK087×20.5-39-X | 87 | 76.3 | 81.1 | 78 | 78 | 1 | 20° | 8GJ |
| DLK94-Z63 | 94 | 61 | 65.5 | 63 | 63 | 1 | 20° | 8EG/GB1095 |
| DLK98-Z54 | 98 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK99-Z54 | 99 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK103.5-Z58 | 103.5 | 70 | 75.625 | 72.5 | 58 | 1.25 | 20° | 8级-GB/T10095 |
| DLK110×21.5-40-Z81 | 110 | 98.7 | 104.33 | 101.25 | 81 | 1.25 | 20° | 8级/GB10095 |
| DLK116-Z69 | 116 | 83.986 | 89.611 | 69 | 1.25 | 20° | GB10095-888GJ | |
| DLK124-Z60 | 124 | 86.85 | 93.6 | 90 | 60 | 1.5 | 20° | 8EG/GB1095 |
| DLK129-Z75 | 129 | 91.25 | 96.785 | 92.419 | 75 | 1.25 | 20° | JGMA 3级 |
| 1. 本产品适用于电动自行车轮毂电机(内转子电机) This product is suitable for electric bicycle wheel hub motors( Inner Rotor Motor) 2.DLK116-Z69 对应产品型号编码-DLK116-Z69.A1.A2.A3 20220606 EM-06001 L-4.7-1 EMGER001 →(右旋) DLK116-Z69 Corresponding product model code：DLK116-Z69.A1.A2.A3 20220606 EM-06001 L-4.7-1 EMGER001 →(right rotation) | ||||||||

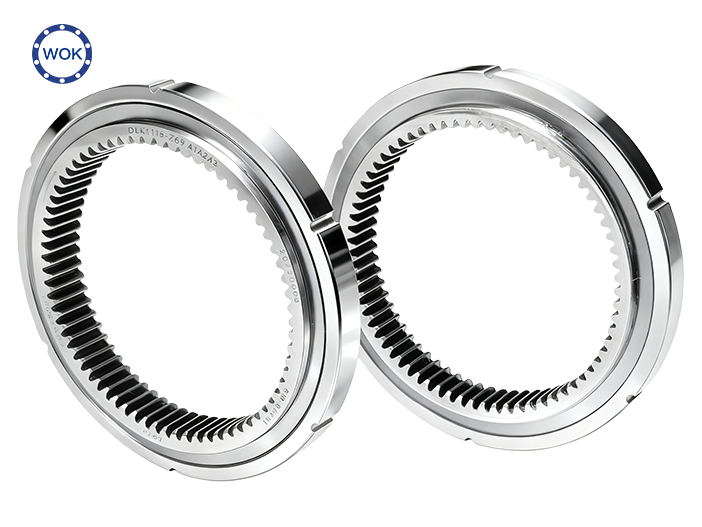

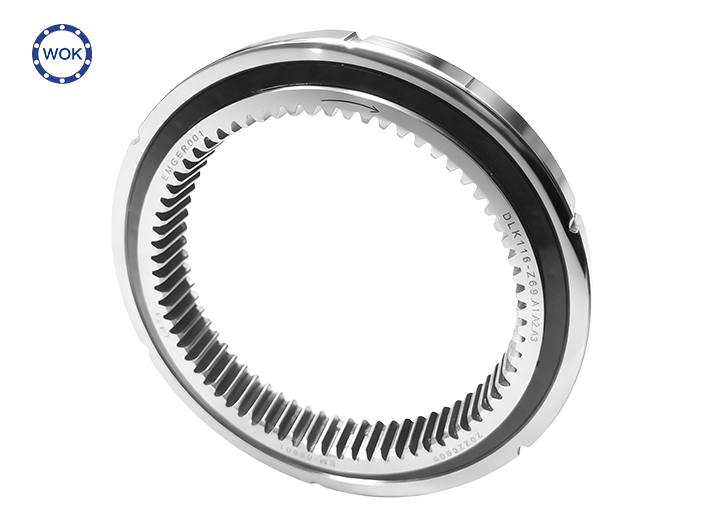

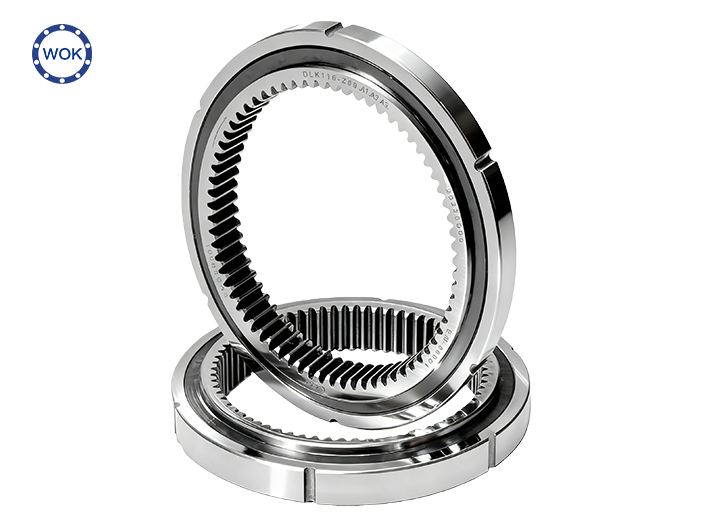

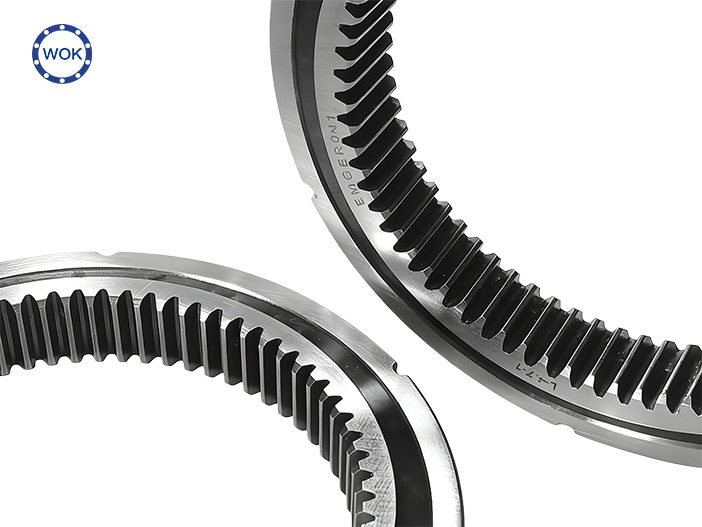

Product description
This one-way clutch is primarily used in electric bicycles equipped with internal rotor motors, and is independently developed and produced by our company. The use of this clutch rotor results in better dynamic balancing, enhancing the performance of the electric bicycle motor. It boasts advantages such as long service life, high temperature resistance, low noise, and more stable performance.
Technical parameter requirements:
1. Use high-temperature grease filling internally and seal it properly. The working temperature of the grease is -20 ℃ to 150 ℃.
2. Bearing clearance: C3-C5, bearing vibration level: Z2 group.
3. The parts must be cleaned and washed thoroughly before assembly, and it is strictly prohibited to strike the inner and outer rings.
4. The rated torque of the one-way drive is 50N. m, the maximum torque is greater than 80N. m, and the number of clutch transmissions is greater than 300000 times.

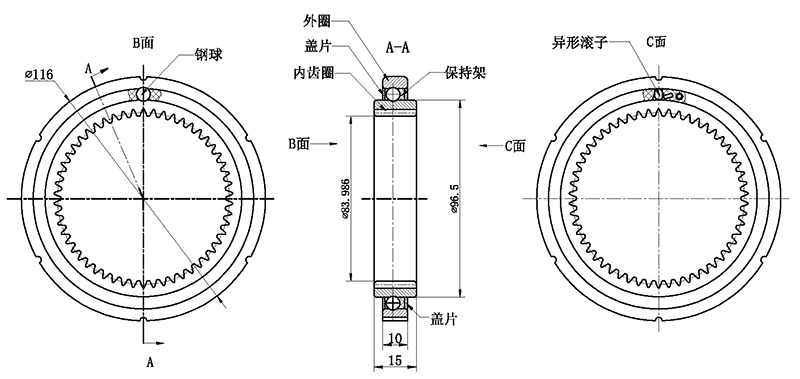

5. From the direction of view A, the outer ring remains stationary, while the inner wheel rim rotates in the direction of the rotation arrow shown in the diagram.
