电动自行车内转子电机离合器技术参数表 E-bike Inner Rotor Motor Clutch Technical Specification
产品详情
| 电动自行车内转子电机离合器技术参数表 E-bike Inner Rotor Motor Clutch Technical Specifications Table | ||||||||
| 型号 Product Code | 外径 external diameter | 齿顶圆直径 Addendum diameter | 齿根圆直径 Root circle diameter | 分度圆直径 Dividing circle diamerer | 齿数 Number of teeth | 模数 Modulus | 压力角 Pressure angle | 精度等级 Accuracy class |
| DLK077×22-25-X | 77 | 65.25 | 70.75 | 67.5 | 54 | 1.25 | 20° | 8GJ |
| DLK087×20.5-39-X | 87 | 76.3 | 81.1 | 78 | 78 | 1 | 20° | 8GJ |
| DLK94-Z63 | 94 | 61 | 65.5 | 63 | 63 | 1 | 20° | 8EG/GB1095 |
| DLK98-Z54 | 98 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK99-Z54 | 99 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK103.5-Z58 | 103.5 | 70 | 75.625 | 72.5 | 58 | 1.25 | 20° | 8级-GB/T10095 |
| DLK110×21.5-40-Z81 | 110 | 98.7 | 104.33 | 101.25 | 81 | 1.25 | 20° | 8级/GB10095 |
| DLK116-Z69 | 116 | 83.986 | 89.611 | 69 | 1.25 | 20° | GB10095-888GJ | |
| DLK124-Z60 | 124 | 86.85 | 93.6 | 90 | 60 | 1.5 | 20° | 8EG/GB1095 |
| DLK129-Z75 | 129 | 91.25 | 96.785 | 92.419 | 75 | 1.25 | 20° | JGMA 3级 |

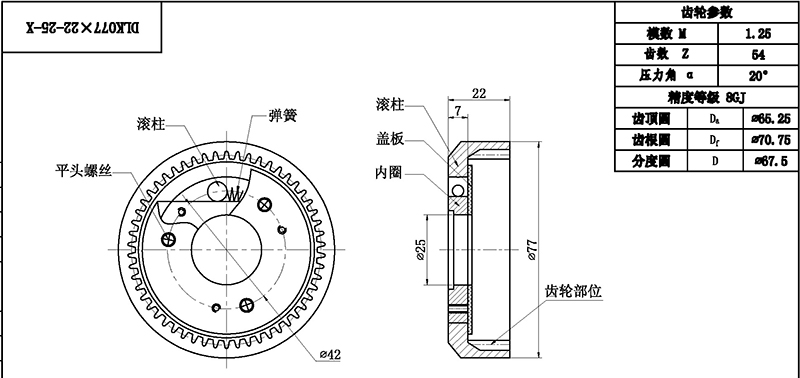

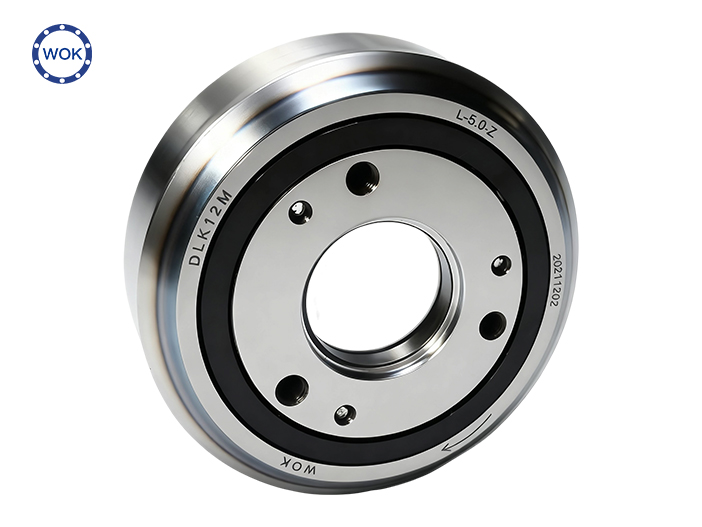

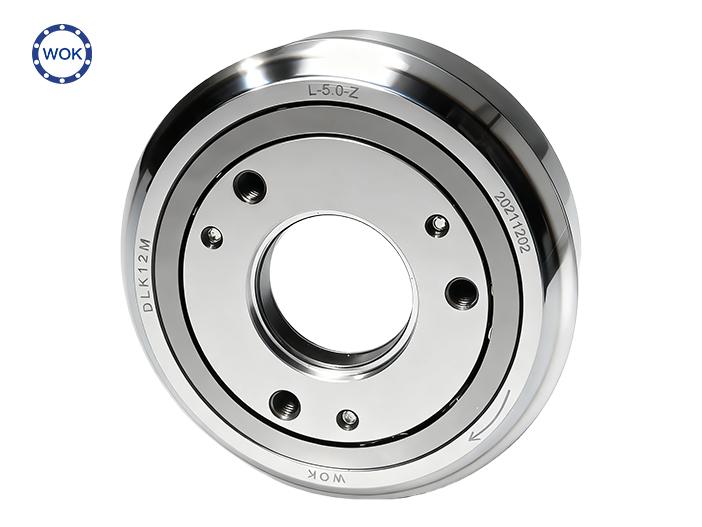

| 1. 本产品适用于电动自行车轮毂电机(内转子电机) This product is suitable for electric bicycle wheel hub motors( Inner Rotor Motor) 2. DLK077×22-25-X 对应产品型号编码-DLK12M L-5.0-Z 20211202 → WOK (右旋) DLK077×22-25-X Corresponding product model code: DLK12M L-5.0-Z 20211202 → WOK(right rotation) | ||||||||
说明

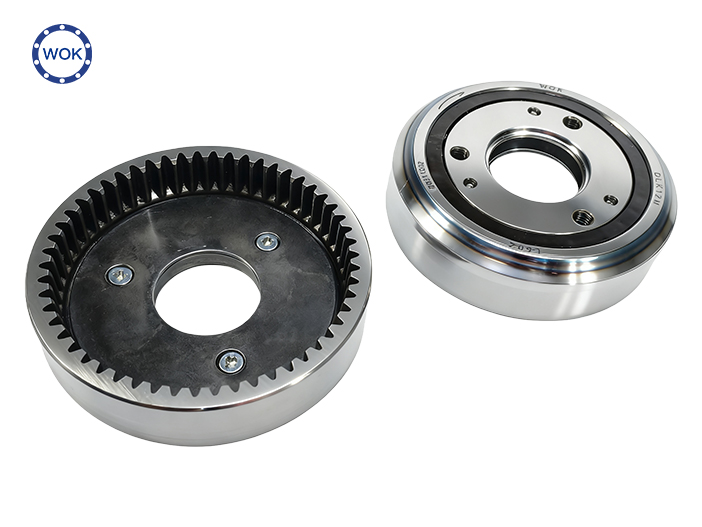

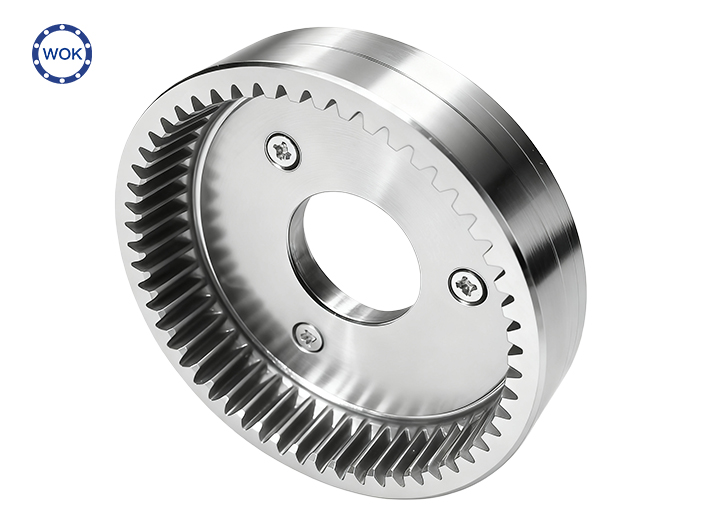

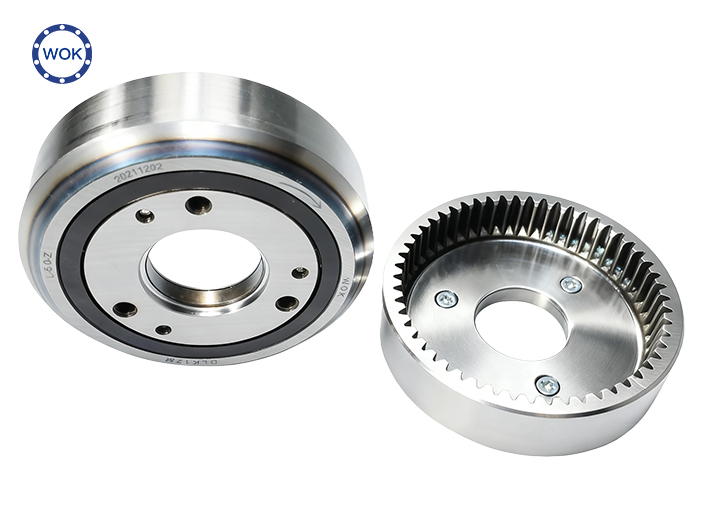

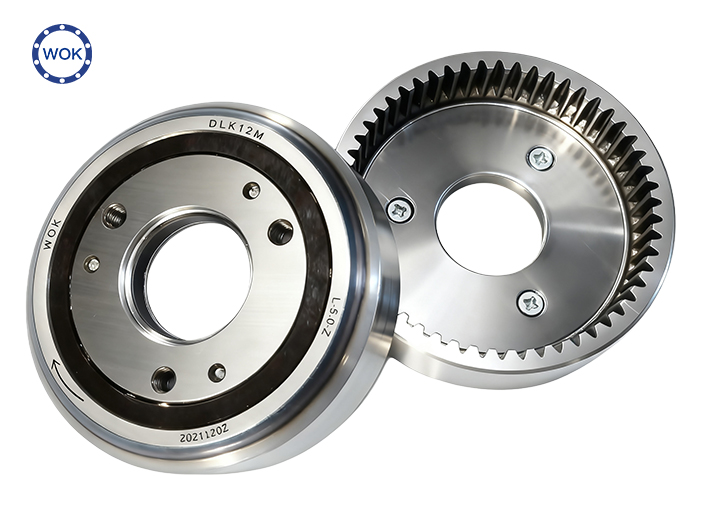

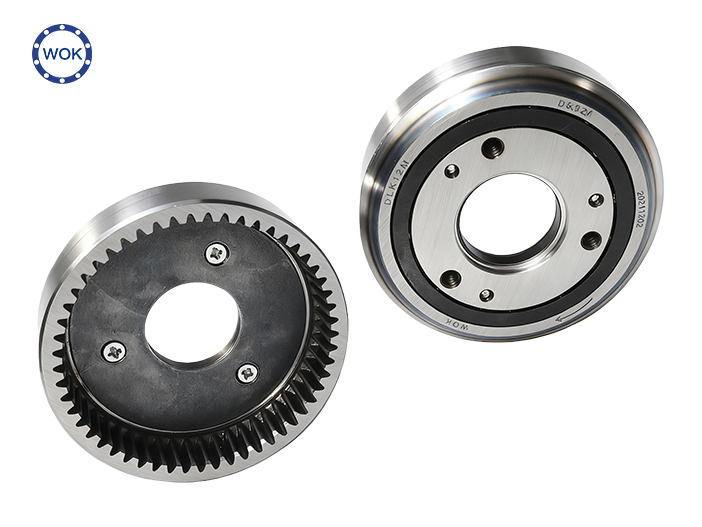

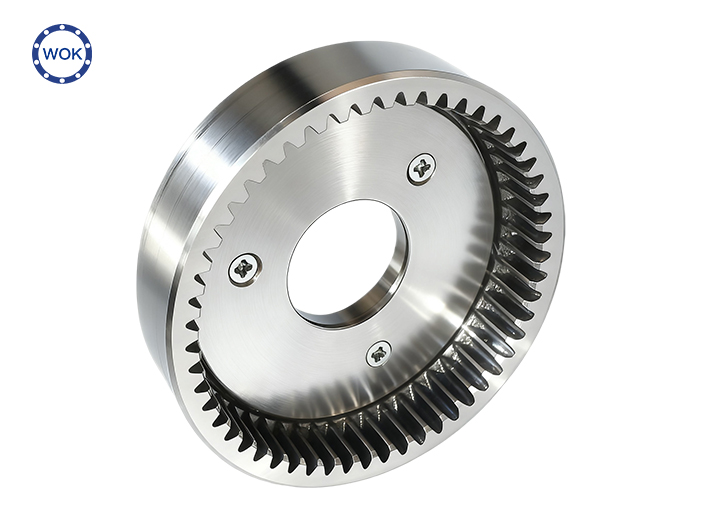

本款单向离合器主要应用于配备内转子电机的电动自行车，由本公司独立研发和生产。使用本离合器转子的动平衡效果更好，提升了电动自行车电机的使用性能，具有使用寿命长，耐高温，低噪音，性能更稳定等优点。
DLK077×22-25-X——This one-way clutch is mainly used in electric bicycles equipped with inner rotor motors, and is independently developed and produced by our company. The dynamic balance effect of using the clutch rotor is better, the use performance of the electric bicycle motor is improved, and it has the advantages of long service life, high temperature resistance, low noise, and more stable performance.
技术要求：
1.离合器能经受30万次离合实验不失效，扭力在40-50N之间；最大扭矩不大于180N.m，保证其正常，不能打滑，卡死等现象。扭矩达120N.m时，受力点不能有划痕。
1. The clutch can withstand 300,000 clutch experiments without failure, and the torque is between 40-50N; the maximum torque is greater than 180N.m, to ensure that it is normal, and it cannot slip or jam. When the torque reaches 120N.m, the stress point should not have scratches.
